SKU: TS-0204-1143 | UPC: 9329677021493

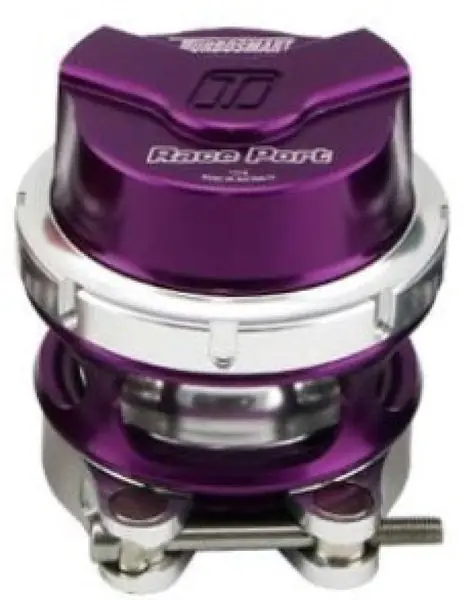

Turbosmart BOV Race Port Female Gen-V Purple – No Weld Flange Universal Turbo Fit
The Turbosmart Race Port Gen-V BOV Female No Weld Flange in Purple serves as a vent-to-atmosphere blow-off valve for turbocharged vehicles with 50mm charge pipes. Its clamp-style no-weld adapter enables simple bolt-on setup on aftermarket piping without cutting or welding. This design provides rapid pressure release sharpens throttle response and supports high boost levels during aggressive driving.
Key Features
- No Weld Flange Adapter: 50mm clamp secures to aluminum or silicone pipes for hassle-free install and removal
- Race Port Design: Single large outlet dumps maximum airflow instantly for quick boost recovery and reduced lag
- Gen-V Piston Seal: Nitronic 60 seat and upgraded seal eliminate leaks under extreme pressure and heat
- Adjustable Springs: Six springs included tune operation from 5 to 30+ PSI for any turbo setup
- Billet Construction: CNC 6061-T6 aluminum body purple anodized bonnet withstands track abuse
Product Notes
- Vent-to-atmosphere operation for competition use only where permitted
- Verify 50mm OD charge pipe before install
- Includes gasket springs O-rings and hardware
Installation Notes
- Professional installation recommended.
- Tighten clamps to 4-5 Nm torque on 50mm pipe
- Bolts to standard TMAP or MAP sensor flanges
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2002-2021 | Subaru | Impreza | WRX |
| 2004-2021 | Subaru | Impreza | STI |
| 2003-2015 | Mitsubishi | Lancer Evolution | Evo VIII-IX-X |
| 1989-1998 | Nissan | 240SX Silvia | S13 S14 SR20DET |
| 2003-2009 | Nissan | 350Z | All |
| Universal | Any Turbo | 50mm Pipe | N/A |
Why Choose Turbosmart?
- Hand-crafted in Sydney Australia since 1997 for proven durability
- Strict quality control and testing in dedicated facility
- Innovative engineering from billet materials to piston operation
Frequently Asked Questions
- Q: Does it fit my Subaru WRX or STI turbo setup?
A: Yes fits 2002-2021 WRX and 2004-2021 STI with 50mm charge pipe using no-weld clamp - Q: What materials are used in construction?
A: Billet 6061-T6 aluminum body Nitronic 60 valve seat and stainless hardware for heat resistance - Q: What warranty coverage applies?
A: Limited lifetime warranty covers manufacturing defects when installed and used correctly
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Original Turbosmart box 10 x 7 x 7 inches
- Weight: 2.45 lbs
