SKU: 48700 | UPC: 00840103412368

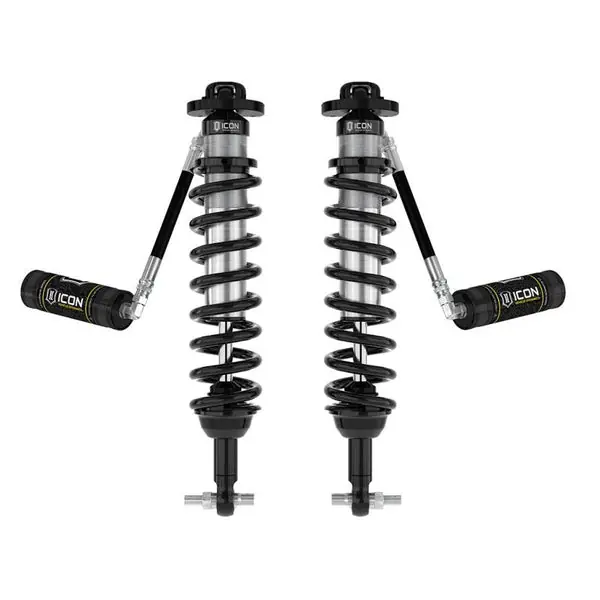

ICON 21-UP Ford Bronco 2-3in Front 2.5 VS RR COILOVER KIT
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilovers upgrade the 2021 and newer Ford Bronco suspension. These coilovers provide 3-4 inches of lift on non-Sasquatch Broncos or 2-3 inches over stock Sasquatch height for fitting larger wheels and tires. Vehicle-specific valving, 2.5-inch shock body, and remote reservoirs deliver extended travel, consistent damping, and resistance to fade during demanding off-road use.
Key Features
- Adjustable Ride Height: Threaded shock body collar allows precise 3-4in lift adjustment on standard Broncos or 2-3in over Sasquatch for custom stance and tire clearance.
- Remote Reservoirs: External reservoirs increase oil volume and cooling surface to prevent cavitation and maintain performance under extreme heat and high-speed abuse.
- 2.5-inch Diameter Body: Larger body and 2-inch piston provide greater oil flow and damping control compared to stock for improved ride quality on pavement and trails.
- Vehicle-Specific Design: Tuned valving and shock lengths match Bronco geometry for maximum wheel travel and balanced handling front to rear with ICON rear coilovers.
- CDCV Compatible Upgradable: Internal bypass design supports optional ICON Compression Damping Control Valve for on-the-fly 10-level compression adjustment.
Product Notes
- Requires ICON rear coilovers for balanced performance. sold separately.
- Pair with aftermarket wheels and 35-inch tires maximum for optimal function.
- Box dimensions: 40in L x 16in W x 10in H. total shipping weight 52 lbs.
Installation Notes
- Professional installation recommended.
- 2-4 hours per side with standard tools. spring compressor required.
- Includes all hardware, OEM-style bushings, and preload plates for direct bolt-on fit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2024 | Ford | Bronco | Badlands |
| 2021-2024 | Ford | Bronco | Base |
| 2021-2024 | Ford | Bronco | Big Bend |
| 2021-2024 | Ford | Bronco | Black Diamond |
| 2022-2024 | Ford | Bronco | Everglades |
| 2021 | Ford | Bronco | First Edition |
| 2023-2024 | Ford | Bronco | Heritage Edition |
| 2023-2024 | Ford | Bronco | Heritage Limited Edition |
| 2021-2024 | Ford | Bronco | Outer Banks |
| 2021-2024 | Ford | Bronco | Wildtrak |
| 2021-2024 | Ford | Bronco | Sasquatch Package (all trims) |
Why Choose ICON?
- Proven in desert racing and rock crawling with real-world testing.
- Precision CNC-machined components from high-grade materials.
- 100% rebuildable in-house with vehicle-specific engineering.
Frequently Asked Questions
- Q: Does this kit fit Sasquatch package Broncos?
A: Yes, provides 2-3 inches of lift over stock Sasquatch height on 2021-2024 2-door and 4-door models with 35-inch tire capability. - Q: What materials are used in construction?
A: 6061 aircraft-grade aluminum reservoirs, zinc-plated steel bodies, and PTFE-lined bushings for corrosion resistance and smooth operation. - Q: What is the warranty coverage?
A: ICON Limited Lifetime Warranty against defects in material and workmanship when installed and used as intended.
Shipping & Handling
- Method: UPS Ground or Freight
- Availability: In stock – ships same or next business day
- Packaging: Secure foam-packed box 40 x 16 x 10 inches
- Weight: 52 lbs
