SKU: 58775C | UPC: 00840103414911

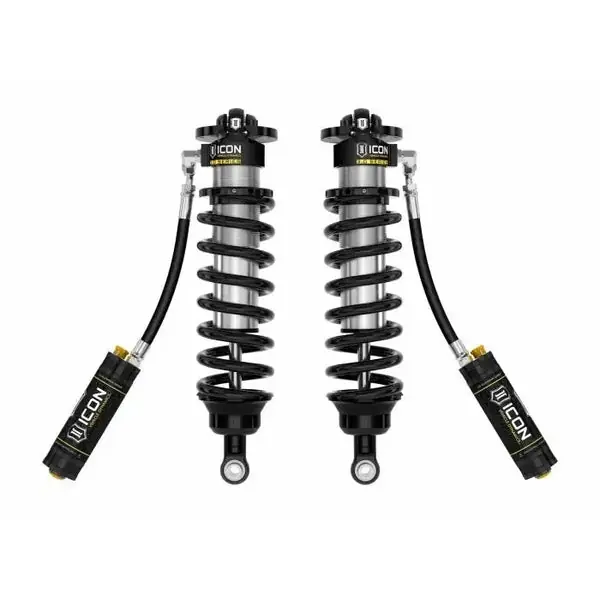

ICON 58775C 2022+ Toyota Tundra 3.0 Series VS Remote Reservoir CDCV Coilover Kit
ICON 58775C 3.0 Series coilovers with Compression Damping Control Valves deliver precise suspension tuning for 2022-2023 Toyota Tundra SR, SR5, Limited, Platinum, 1794 Edition, Capstone (4WD) and 2023 Toyota Sequoia SR5, Limited, Platinum, Capstone (4WD). These front coilovers increase wheel travel up to 40% over stock while improving damping for better control on trails, rocks or highways. Bolt-on design offers 1.25-3.5″ front lift (gas engine models) for larger 35″ tires.
Key Features
- 40% More Front Wheel Travel: Delivers greater articulation and capability over stock suspension for demanding off-road conditions
- Adjustable Lift 1.25-3.5″: Built-in ride height changes allow fitment of 35×12.50″ tires with minor trimming on aftermarket 17×8.5″ wheels (5.75″ backspace)
- CDCV Compression Damping: User-adjustable valves control fluid flow for custom tuning across street, crawl or high-speed desert runs
- Multi-Stage Bump Zone: Boosts bottom-out resistance in last 40% of travel to maintain control on hard hits and obstacles
- 3.0″ Body Design: 50% more piston area in ride zone and 100% in bump zone versus 2.5″ shocks for enhanced stability
- Fully Rebuildable: CNC 6061 aluminum components, PTFE bearings, 7/8″ chrome shafts ensure long-term durability and serviceability
Product Notes
- OEM wheels and tires fit without issue. 35″ tires may need minor fender work
- Lift heights vary: i-Force MAX hybrid 0.75-3″, TRD Sport SR5 2.25-4.25″. add weight alters range
- Not for TRD Pro models. ships as special order with LTL ground freight
Installation Notes
- Professional installation recommended.
- Requires ICON front upper control arms (sold separately)
- 4WD non-TRD Off-Road needs ICON diff drop (55156) or Toyota TRD axles (434200C020 driver/434100C020 passenger) to prevent axle damage. lift over 2.25″ needs sway bar drop (55154)
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023 | Toyota | Sequoia | Capstone |
| 2023 | Toyota | Sequoia | Limited |
| 2023 | Toyota | Sequoia | Platinum |
| 2023 | Toyota | Sequoia | SR5 |
| 2022-2023 | Toyota | Tundra | 1794 Edition |
| 2022-2023 | Toyota | Tundra | Capstone |
| 2022-2023 | Toyota | Tundra | Limited |
| 2022-2023 | Toyota | Tundra | Platinum |
| 2022-2023 | Toyota | Tundra | SR |
| 2022-2023 | Toyota | Tundra | SR5 |
Why Choose ICON?
- Vehicle-specific tuning matched to Tundra and Sequoia dynamics for consistent front-to-rear balance
- High-volume oil flow and larger pistons handle extreme off-road heat and impacts
- Precision CNC components with induction-hardened shafts for reliable long-term performance
Frequently Asked Questions
- Q: What lift height for i-Force MAX hybrid Tundra?
A: Front range is 0.75-3″ over stock. gas models 1.25-3.5″, TRD Sport SR5 2.25-4.25″ - Q: Does this work with Adaptive Variable Suspension?
A: Yes, all other AVS vehicle systems remain functional after install - Q: What warranty coverage?
A: ICON limited lifetime warranty on shocks. fully rebuildable and re-tunable by certified shops
Shipping & Handling
- Method: LTL ground freight
- Availability: Special order – ships within 3-5 business days
- Packaging: Securely boxed kit, 42″ L x 15″ W x 15″ H
- Weight: 68 lbs
Reviews
There are no reviews yet.
