SKU: K93002

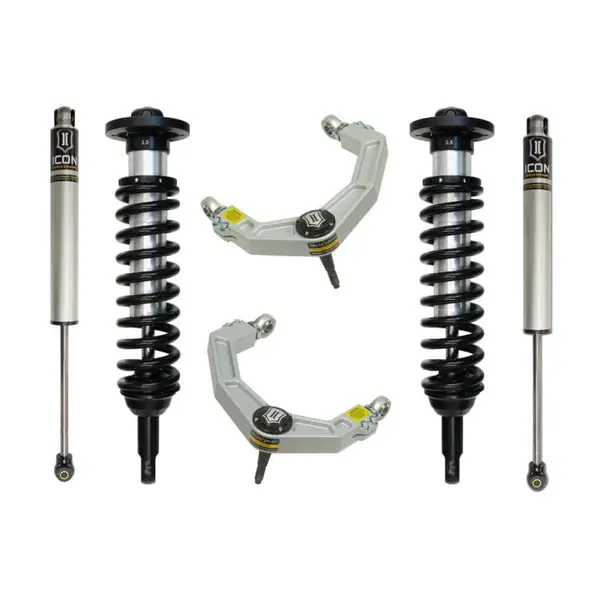

ICON 09-13 Ford F-150 4WD 0-2.75in Stage 2 Suspension System w/Billet UCA
Upgrade your 2009-2013 Ford F-150 4WD with the ICON K93002 Stage 2 Suspension System, providing 0-2.75 inches of lift for improved stance and capability. This complete kit includes 2.5 Series front coilover shocks, 2.0 Series rear shocks, and billet upper control arms equipped with the patented Delta Joint for maximum durability and smooth operation on and off road. Engineered for precise handling and long-lasting performance in demanding conditions.
Key Features
- Patented Delta Joint: Heavy-duty high-angle ball joint in billet UCAs combines ball joint durability with uniball performance, featuring zinc-plated housing and grease seal for corrosion resistance and noise-free operation.
- Billet Aluminum UCAs (58560DJ): Precision-machined 6061 aluminum arms correct camber and caster for proper alignment after lift, with metal-on-metal construction and greasable design for extended service life.
- 2.5 Series Front Coilovers (58531DJ x2): Velocity-based valving delivers balanced damping control, with 2.75 inches of lift capability and extended shock travel for superior ride quality over rough terrain.
- 2.0 Aluminum Series Rear Shocks (57841 x2): Remote reservoir IFP design absorbs impacts effectively, tuned specifically for F-150 rear suspension to maintain stability and traction.
- Complete Bolt-On System: No cutting or welding required, increases ground clearance and suspension travel while retaining daily driver comfort and factory ride height adjustability.
Product Notes
- Requires wheel alignment after installation to ensure optimal tire wear and handling.
- Regular greasing of Delta Joint recommended every 3,000-5,000 miles for peak performance.
- Kit ships as one large box weighing 105 lbs with dimensions 44 x 16 x 12 inches.
Installation Notes
- Professional installation recommended.
- Estimated install time 6-8 hours with standard tools and lift.
- Fully compatible with factory hardware, no additional components needed for 0-2.75in lift.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2013 | Ford | F-150 | FX4 |
| 2009-2013 | Ford | F-150 | King Ranch |
| 2009-2013 | Ford | F-150 | Lariat |
| 2011 | Ford | F-150 | Lariat Limited |
| 2013 | Ford | F-150 | Limited |
| 2009-2013 | Ford | F-150 | Platinum |
| 2009-2013 | Ford | F-150 | STX |
| 2010-2013 | Ford | F-150 | SVT Raptor |
| 2009-2013 | Ford | F-150 | XL |
| 2009-2013 | Ford | F-150 | XLT |
Why Choose ICON?
- Engineered and tested for real-world off-road racing and street use.
- High-strength materials built to withstand harsh environments and heavy abuse.
- Precision manufacturing ensures perfect fitment and reliable long-term performance.
Frequently Asked Questions
- Q: Will this kit fit 2010-2013 F-150 SVT Raptor models?
A: Yes, the K93002 is confirmed to fit 2010-2013 Ford F-150 SVT Raptor 4WD with no modifications required. - Q: What material are the upper control arms made from?
A: Billet 6061 aircraft-grade aluminum with zinc-plated Delta Joint housings for maximum strength and corrosion protection. - Q: What is the warranty coverage?
A: ICON provides a limited lifetime warranty on all manufactured parts against defects in materials or workmanship.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock – ships same or next business day
- Packaging: Single box measuring 44 x 16 x 12 inches
- Weight: 105 lbs
