SKU: 177287 | UPC: 840232711912

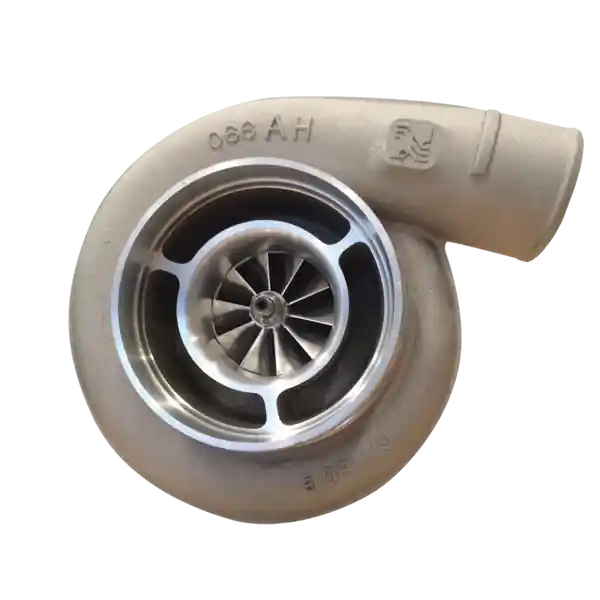

BorgWarner Turbocharger SX S400SX4 T6 A/R 1.32 80mm Inducer w/ Race Cover for 2003-2018 Ram Cummins 5.9L/6.7L
This BorgWarner SX S400SX4 turbocharger features an 80mm billet inducer and race cover for extreme airflow in high-horsepower builds. It fits modified Ram Cummins 5.9L and 6.7L diesel trucks with T6 manifolds delivering 1200-2000 HP potential. The T6 A/R 1.32 divided housing ensures responsive spool while supporting massive top-end power for drag racing and sled pulling.
Key Features
- 80mm Billet Compressor Wheel (80/107mm): Delivers 110+ lbs/min airflow for dyno-proven power gains in 1000+ HP applications
- Race Compressor Cover: Open design allows 10%+ higher wheel speeds and unrestricted flow for maximum boost levels
- T6 Divided A/R 1.32 Turbine Housing: Optimizes exhaust flow for quicker spool-up and sustained power across the RPM range
- SX-E Turbine Wheel (99/109mm): Advanced aerodynamics transfer energy efficiently reducing backpressure in big single turbo setups
- Oil-Cooled CHRA with Speed Sensor Port: Factory-machined port supports monitoring for safe reliable operation at high boost
Product Notes
- Requires aftermarket T6 divided manifold and custom piping for installation
- Designed for race and off-road use only no emissions compliance
- No core charge required includes all necessary turbo assembly components
Installation Notes
- Professional installation recommended.
- Match to T6 divided inlet manifold V-band outlet flange standard
- External wastegate required compatible with T6 V-band clamps sold separately
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins Diesel |
| 2007-2012 | Dodge | Ram 2500 | 6.7L Cummins Diesel |
| 2007-2012 | Dodge | Ram 3500 | 6.7L Cummins Diesel |
| 2013-2018 | Ram | 2500 | 6.7L Cummins Diesel |
| 2013-2018 | Ram | 3500 | 6.7L Cummins Diesel |
Why Choose BorgWarner?
- Direct OEM technology used in professional motorsports worldwide
- Investment cast housings endure extreme heat and boost cycles
- Precision balanced assembly for vibration-free performance
Frequently Asked Questions
- Q: Will this bolt up to stock Cummins manifolds?
A: No it requires aftermarket T6 divided manifolds from brands like Wehrli HSP or Patriot Diesel for proper fit - Q: What materials are used in construction?
A: Billet 2618 aluminum compressor wheel Inconel turbine wheel and Ni-Resist housings for heat resistance - Q: What warranty applies?
A: BorgWarner offers 12-month unlimited mileage warranty for race applications with proof of professional installation
Shipping & Handling
- Method: UPS Ground or Freight
- Availability: Special order ships within 3-5 business days
- Packaging: Secure double-walled box 24 x 20 x 20 inches
- Weight: 55 lbs
