SKU: 14009097006 | UPC: 840232702088

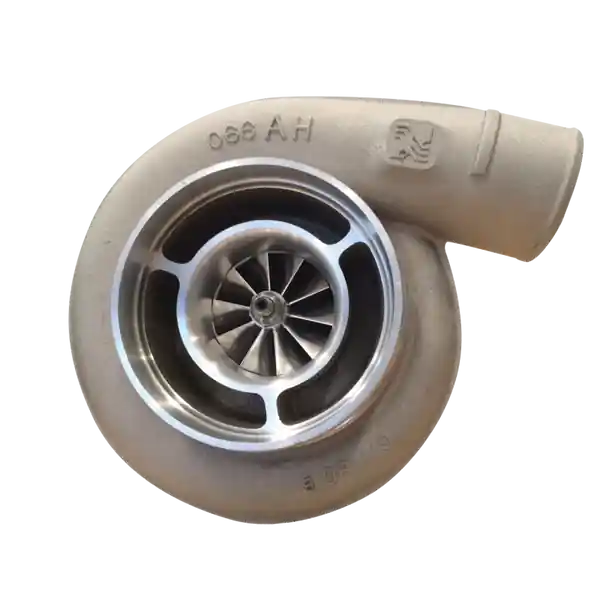

BorgWarner SuperCore Assembly SX-E S400SX-E 72mm 96/87 for Cummins 5.9L/6.7L
BorgWarner SuperCore Assembly SX-E S400SX-E delivers the rotating heart of a high-flow turbocharger with 72mm compressor wheel and 96/87mm turbine wheel. Built for Cummins diesel trucks including 5.9L and 6.7L engines in Dodge Ram applications. Provides massive airflow up to 1100HP with dual ceramic ball bearings for fast spool and long life under extreme boost.
Key Features
- Dual Ball Bearing CHRA: Ceramic ball bearings reduce friction for quicker spool-up and withstand 150000+ RPM operation
- 72mm Compressor Wheel: Billet aluminum 72mm inducer 99mm exducer wheel moves 110+ lbs/min of air for dyno-proven power gains
- 96/87mm Turbine Wheel: Inconel 96mm inducer 87mm exducer wheel handles EGTs over 1600F with efficient exhaust flow
- S400SX-E Frame Compatible: Direct fit into BorgWarner S400SX-E housings for custom turbo builds in trucks and racing
- Lightweight Design: Precision balanced assembly weighs 26.5 lbs for responsive throttle and reduced drivetrain stress
Product Notes
- SuperCore only requires separate compressor cover turbine housing and V-band clamps for complete turbo assembly
- Oil and coolant feed lines must match S400SX-E specs during build
- Standard ground shipping in protective box measuring 20x18x16 inches
Installation Notes
- Professional installation recommended.
- Assemble with matching S400SX-E T4 or V-band turbine housing and compressor cover
- Compatible with -4AN oil feed -10AN drain lines and M12x1.5 fittings
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-1998 | Dodge | Ram 2500 | 5.9L Cummins 12V |
| 1994-1998 | Dodge | Ram 3500 | 5.9L Cummins 12V |
| 1998.5-2002 | Dodge | Ram 2500 | 5.9L Cummins 24V |
| 1998.5-2002 | Dodge | Ram 3500 | 5.9L Cummins 24V |
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins CR |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins CR |
| 2007.5-2022 | Dodge/Ram | 2500/3500 | 6.7L Cummins |
Why Choose BorgWarner?
- Proven OE supplier for global automakers with decades of turbo expertise
- Every assembly factory balanced to 120000 RPM for vibration-free operation
- Advanced metallurgy endures high boost and heat in real-world racing
Frequently Asked Questions
- Q: Does this fit 2005 Dodge Ram 3500 5.9L Cummins?
A: Yes pairs with S400SX-E housing for upgraded turbo on 2003-2007 Ram 2500/3500 5.9L Cummins trucks - Q: What material is the turbine wheel?
A: Inconel alloy resists high exhaust temperatures up to 1650F for durability in diesel applications - Q: What warranty applies and install tips?
A: 1-year unlimited mileage warranty with professional install using correct oiling setup
Shipping & Handling
- Method: UPS or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Secure foam-lined box 20x18x16 inches
- Weight: 26.5 lbs
