SKU: 640122 | UPC: 852156007668

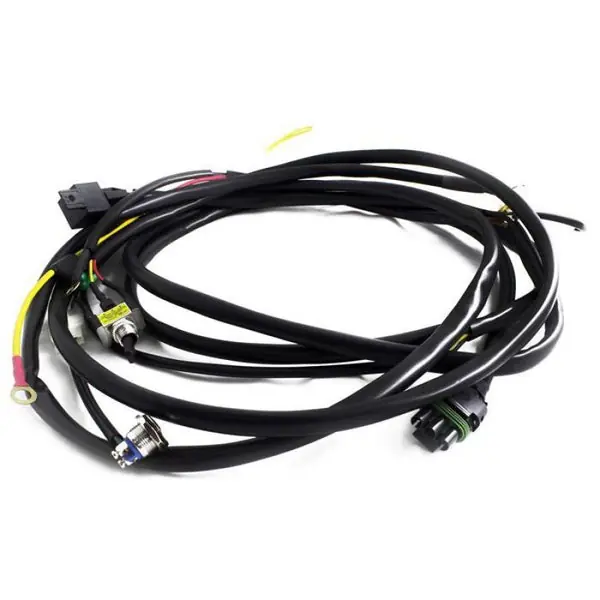

Baja Designs OnX6+/Hybrid/Laser/S8 Wiring Harness w/ Mode Switch (2 Bar Max)
This plug-and-play wiring harness simplifies installation for Baja Designs OnX6+, Hybrid, Laser, and S8 light bars up to 2 bars on any off-road truck, UTV, ATV, or Jeep. Engineered for race conditions, it delivers reliable power with heavy-duty construction and enables backlight or laser dimming modes. Perfect for bumper or roof mounts with 100-inch wire length between battery and connectors.
Key Features
- 100-Inch Wire Length: Provides ample reach from battery ring terminals to weatherpack connectors for flexible bumper or roof mounting on any vehicle.
- Complete Kit Contents: Includes battery ring terminals, high-amperage relay, protective sheathing, and inline fuse for full plug-and-play setup.
- Heavy-Duty Wire Gauge: Built to handle power demands of any size OnX6+, S8, Hybrid, or Laser bar without voltage drop.
- Dual On/Off Switches: Separate toggles control primary light bar function and secondary amber backlight or laser mode for versatile operation.
- Secure Connections: Three-pin weatherpack terminals with splice connectors ensure waterproof, vibration-resistant links for off-road durability.
Product Notes
- Suited for demanding race and off-road use with premium materials.
- Universal design works with all compatible Baja Designs light bars.
- Mounting hardware not included. use existing light bar mounts.
Installation Notes
- Professional installation recommended.
- Route wires away from heat sources and moving parts for longevity.
- Compatible with Baja Designs OnX6+, S8, Hybrid, and Laser bars. no additional hardware needed beyond basics.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Off-Road Vehicles | OnX6+, S8, Hybrid, Laser Bars (Up to 2) |
| 2007-2024 | Jeep | Wrangler | JL/JKU/TJL |
| 2021-2024 | Ford | Bronco | All |
| 2016-2024 | Toyota | Tacoma | TRD Off-Road/Pro |
| 2017-2024 | Ford | F-150 Raptor | All |
Why Choose Baja Designs?
- Trusted leader in off-road lighting for over 30 years.
- Components built to withstand extreme dust, water, and vibration.
- Precision-engineered for seamless integration with OnX6+ and S8 systems.
Frequently Asked Questions
- Q: Which light bars does this harness support?
A: Designed for Baja Designs OnX6+, Hybrid, Laser, and S8 bars up to 2 bars maximum, with mode switching for backlight or laser functions. - Q: What type of connectors are used?
A: Three-pin weatherpack terminals paired with splice connectors for secure, weatherproof connections. - Q: What warranty coverage applies?
A: Backed by Baja Designs 5-year limited warranty on wiring harness components.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock – ships same or next business day
- Packaging: Compact box measuring 12 x 8 x 4 inches
- Weight: 1.1 lbs
