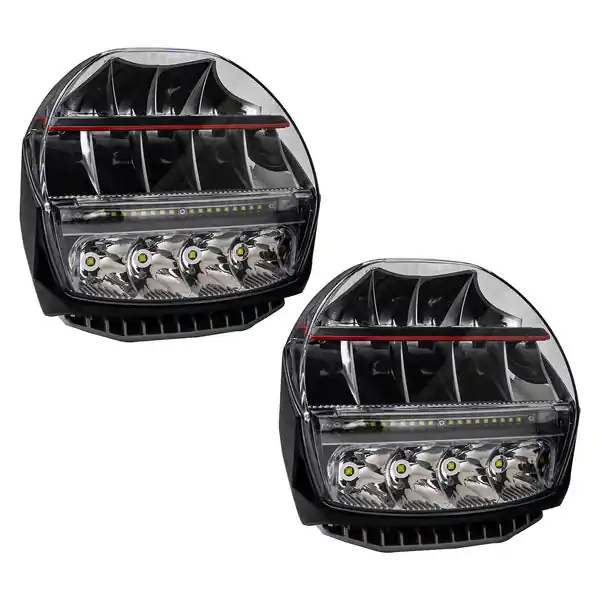

ARB Intensity IQ Driving Lights

SKU:ARBVX17 UPC:09332018084545

ARB – ARBVX17 – Intensity IQ Driving Lights

ARBVX17. ARB Intensity IQ Driving Lights with a Unique Four-Optic Design.Featuring Super Spot Spot Flood and Midrange Options for any Road Condition.Includes Two Lights Wiring Harness Switch Control Module Mounting Brackets and Hardware Unique four-optic LED Configurations Super Spot Spot Flood Midrange.Development – To ensure we meet your expectations ARB invests heavily in research and development. Our design and engineering team utilizes the latest CAD CAM parametric modeling systems and finite element analysis packages and is supported by subcontract companies and universities for special projects like vibration strength and crash testing. With an air bag equipped vehicle for example it is essential that the vehicle’s crush rate and air bag triggering is not altered when a bull bar is installed. Our exhaustive testing programs ensure ARB bull bars meet these requirements. We also devote considerable time and resources toward to sourcing new products from around the world. IPF lights from Japan Warn winches from the US? we scan the globe in search of equipment that meets both the demands of our customers and our own stringent quality requirements. What’s more we’re also constantly on the lookout for new ways to improve our business practices from distribution to customer service. ARB is a Quality Endorsed Company and wherever we can we endeavor toraise the bar?..Connect four Intensity IQ lights on one switch.Up to 50 000+ LED lifespan.IP68 Compliant to 3m dust/water ingress.RoHS compliant.Protected against RFI and EMC interference.Durable UV-resistant powder coat.Multiple control options.touchpad ARB LINX or smartphone app. Compatible with iOS and Android.Onboard switch with up to eight customizable presets.Work light and courtesy light functionality.Pressure equalization breather

ARB Intensity IQ driving lights have been developed with performance front of mind while delivering a design that complements modern vehicle styling. Their unique four-optic design (Super Spot Spot Flood and Midrange) provides an unlimited choice of light beams to suit any road condition. The Super Spot and Spot optics based on free-form reflector technology produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximize the light spread for excellent foreground visibility. The Midrange optics employ a conventional parabolic reflector to illuminate the midrange area. Furthermore the beam pattern of each of the two lights can be independently adjusted so you could run for example one focused on spot and one focused on flood. An innovative sleek new mounting bracket design allows adjustment of light beam angle and provides additional mass and a surface for cooling. A pair of lights provides 1 Lux @ 4429 feet with the Max Spot setting and the Max Flood setting provides 1 Lux @ 2953 feet with up to 164 foot spread on each side of the vehicle. The ARB Intensity IQ lights represent the perfect balance between visibility at distance and spread both down and across the road.

• Add-On:N/A
• Color Temperature:5700 – 6200K
• Compliance:CE ECE R10 R149 UKCA RCM FCC ROHS
• Distance at 1 Lux:Max Spot: 1350m (4429ft)
• Max Combo: 1105m (3625ft)
• Max Flood: 900m (2953ft)
• Fitting Time:Estimated two hours for standard installation to an ARB bumper
• Input:Voltage: 11-32V
• Power: 170W at 13.2V
• Current: 12.9A at 13.2V
• LED Configuration:Super Spot: 4x Cree XP-P LEDs
• Spot: 2x Cree XM-L3 and 3x XP-P LEDs
• Flood: 18x Cree XT-E LEDs
• Midrange: 4x Cree XM-L3 LEDs
• Operating Temperature:-40?C to +80?C (-40?F to +176?F)
• Output – Effective Lumens:Max Flood: 6 666 Lumens
• Max Combo: 6 265 Lumens
• Max Spot: 6 613 Lumens
• Output – Raw Lumens:Max Spot: 7 070 Lumens
• Max Flood: 14 060 Lumens
• Package Contents:2 Driving Lights
• 2 Mounting Brackets and Hardware Kits
• 1 Vehicle Harness
• 1 Switch w/Cable and Connector
• 1 Control Module w/Cable and Connector
• 1 Security Bolts Tool Set
• Prop 65 Yes/No:No
• Title:ARB – ARBVX17 – Intensity IQ Driving Lights
• Weight and Dimensions:Weight: 3.8kg (8.4lbs)
• Dimensions: 220mm (W) x 215mm (H) x 142mm (D) (8.7in x 8.5in x 5.6in)
