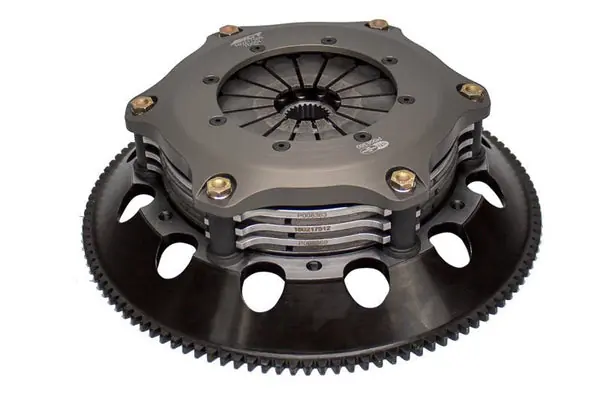

ACT Triple Disc HD/SI Race Clutch Kit

ACT Triple Disc HD/SI Race Kit: T1R3-T01. Excellence in Performance, backed by the best one-year warranty in the industry!

T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT’s sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.

• Clutch Master Cylinder Included:No
• Grease Included:Yes
• Grade Type:Performance
• Flywheel Included:Yes
• Pilot Bushing Included:No
• Pressure Plate Type:Heavy Duty
• Release Bearing Included:No
• Clutch Disc Diameter:7.25 IN
• Disc Material:Sintered Iron
• Input Spline Quantity:26
• Input Shaft Diameter:1.125 IN
• Alignment Tool Included:Yes
• Disc Type Sprung Solid:Solid
• New Or Remanufactured Clutch:New
• Clutch Slave Cylinder Included:No
• Flywheel Bolts Included:Yes
• Pilot Bearing Included:No
• Part Fitment Requirement:Developed for use with 2JZ-GTE engine using G-Force transmission, quicktime bell housing #RM-4031 without block plate and Tilton hydraulic release bearing # 60-4420. Flywheel bolts included (M10-1.25 X 25mm).
• Product Weight (lbs.):23.0
• Prop 65 – Short Label:WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
• Prop 65 Long Label:Warning: This product can expose you to chemicals including carbon black, glass wool fibers, or silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
• Prop 65 Yes/No:Yes
• SFI:1.2
• Title:ACT Triple Disc HD/SI Race Kit
• Torque Capacity (ft/lbs.):1637
• Clutch Disc Diameter:184 mm
